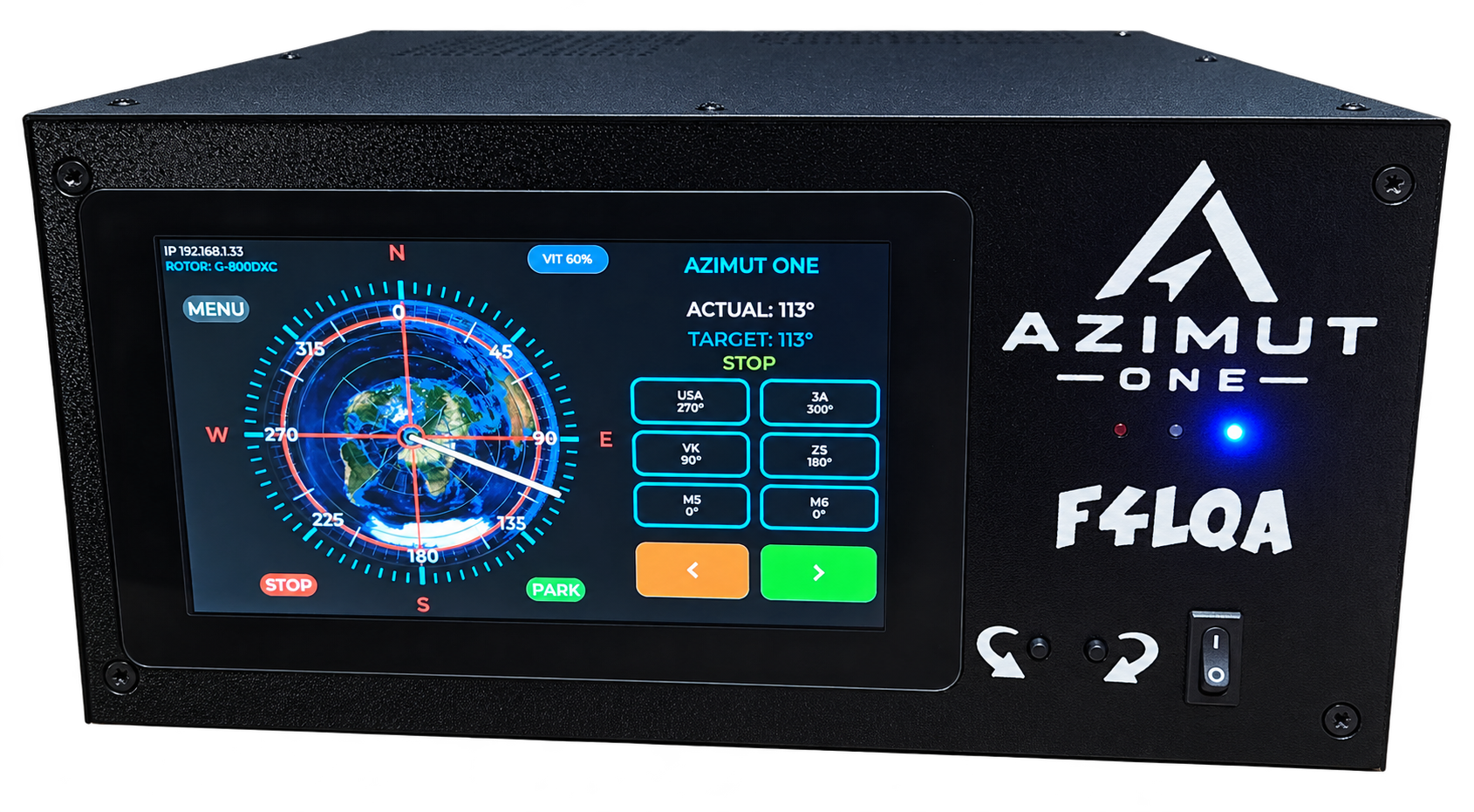

Azimut One DC Mono 200 W
One rotor output, 7-inch touchscreen, Wi-Fi, LAN and direct UDP.
Official shop
Azimut One
DC and AC consoles configured for your rotor, accessories and electronic boards. Choose your product, then your secure payment method.
DC 24 VAC 115/230 VUDP directWi-Fi + LAN
Range with touchscreen
Azimut One DC with screen
Image coming soon
Azimut One DC Mono 350 W
One reinforced rotor output, 7-inch touchscreen, Wi-Fi, LAN and direct UDP.
Image coming soon
Azimut One DC Dual 350 W
Two rotor outputs for azimuth and elevation, Wi-Fi, LAN and direct UDP.
Pre-orders · Web control
Azimut One Light — screenless
Image coming soon
Azimut One Light DC Mono 200 W
Compact controller without a built-in screen. Full Web interface available from a computer, phone or tablet. One 200 W DC rotor output.
Image coming soon
Azimut One Light DC Mono 350 W
Compact controller without a built-in screen. Full Web interface available from a computer, phone or tablet. One reinforced 350 W DC rotor output.
Image coming soon
Azimut One Light DC Dual 350 W
Compact controller without a built-in screen. Full Web interface available from a computer, phone or tablet. Two 350 W DC rotor outputs for azimuth and elevation.
Pre-orders · October 2026
Azimut One with RS485 remote display
Image coming soon
Azimut One DC Mono 200 W — remote display
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual…
View details
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual control button. One 200 W DC rotor output. Pre-order now for delivery in October 2026.
Image coming soon
Azimut One DC Mono 350 W — remote display
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual…
View details
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual control button. One reinforced 350 W DC rotor output. Pre-order now for delivery in October 2026.
Image coming soon
Azimut One DC Dual 350 W — remote display
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual…
View details
Complete version with a remote touchscreen. The display connects over RS485 to the separate control and power unit. The unit retains its LED indicators and a manual control button. Two 350 W DC rotor outputs for azimuth and elevation. Pre-order now for delivery in October 2026.
Complete bundles
Azimut One DC + electronic compass bundles
Image coming soon
Azimut One DC Mono 200 W + compass bundle
Complete bundle including an Azimut One DC Mono 200 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price…
View details
Complete bundle including an Azimut One DC Mono 200 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price. Front-panel customization included. Estimated manufacturing time: approximately 15 days after order confirmation, excluding shipping time.
Image coming soon
Azimut One DC Mono 350 W + compass bundle
Complete bundle including an Azimut One DC Mono 350 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price…
View details
Complete bundle including an Azimut One DC Mono 350 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price. Front-panel customization included. Estimated manufacturing time: approximately 15 days after order confirmation, excluding shipping time.
Image coming soon
Azimut One DC Dual 350 W + compass bundle
Complete bundle including an Azimut One DC Dual 350 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price…
View details
Complete bundle including an Azimut One DC Dual 350 W touchscreen console and one F4HIK-LAB electronic compass, available in flat or round format at the same price. Front-panel customization included. Estimated manufacturing time: approximately 15 days after order confirmation, excluding shipping time.
Parts and connectors
Accessories
6-pin connector kit for Yaesu rotator
Complete male and female kit for making, repairing or adapting a connection cable between a Yaesu controller and a Yaesu antenna rotator. KIT CONTENTS • 1 male 6-pin…
View details
Complete male and female kit for making, repairing or adapting a connection cable between a Yaesu controller and a Yaesu antenna rotator.
KIT CONTENTS
• 1 male 6-pin connector
• 1 female 6-pin connector
• Metal crimp pins and terminals included
• Kit ready to assemble
USES
Ideal for repairing a Yaesu rotator cable, making a rotator adapter, replacing a damaged connector, or creating clean, detachable amateur-radio wiring.
IMPORTANT INFORMATION
Connectors are supplied uncrimped. The buyer must crimp the terminals. Check compatibility with the controller or rotator before ordering.
Controllers and rotators shown in the pictures are for illustration only and are not included.
KIT CONTENTS
• 1 male 6-pin connector
• 1 female 6-pin connector
• Metal crimp pins and terminals included
• Kit ready to assemble
USES
Ideal for repairing a Yaesu rotator cable, making a rotator adapter, replacing a damaged connector, or creating clean, detachable amateur-radio wiring.
IMPORTANT INFORMATION
Connectors are supplied uncrimped. The buyer must crimp the terminals. Check compatibility with the controller or rotator before ordering.
Controllers and rotators shown in the pictures are for illustration only and are not included.
Potentiometer
Replacement potentiometer for Yaesu and Kenpro antenna rotators using a 500 Ω position feedback potentiometer. This model has an internal mechanical stop of approxim…
View details
Replacement potentiometer for Yaesu and Kenpro antenna rotators using a 500 Ω position feedback potentiometer.
This model has an internal mechanical stop of approximately 300°, as used in many recent Yaesu rotators. Through the rotator internal gearing, this travel provides position feedback across the full 450° antenna rotation.
SPECIFICATIONS
• Resistance: 500 Ω
• Mechanical travel: approximately 300° with internal stop
• Full reading of the rotor 450° travel through the gearing
• Shaft diameter: 6 mm
• Shaft height: 20 mm
• Slotted shaft for screwdriver adjustment
• Connection: 3 solder terminals
• Body diameter: approximately 36 mm
• Condition: new
COMPATIBILITY
Suitable for many Yaesu and Kenpro antenna rotators using a 500 Ω feedback potentiometer.
Before ordering, compare the original potentiometer resistance, body dimensions, shaft diameter and length, mounting points and terminal positions. Compatibility must be checked against the original component specifications and dimensions.
This model has an internal mechanical stop of approximately 300°, as used in many recent Yaesu rotators. Through the rotator internal gearing, this travel provides position feedback across the full 450° antenna rotation.
SPECIFICATIONS
• Resistance: 500 Ω
• Mechanical travel: approximately 300° with internal stop
• Full reading of the rotor 450° travel through the gearing
• Shaft diameter: 6 mm
• Shaft height: 20 mm
• Slotted shaft for screwdriver adjustment
• Connection: 3 solder terminals
• Body diameter: approximately 36 mm
• Condition: new
COMPATIBILITY
Suitable for many Yaesu and Kenpro antenna rotators using a 500 Ω feedback potentiometer.
Before ordering, compare the original potentiometer resistance, body dimensions, shaft diameter and length, mounting points and terminal positions. Compatibility must be checked against the original component specifications and dimensions.
Image coming soon
AZIMUT ONE MAG COMPASS — Flat
Boom-mounted RS485 azimuth sensor. Flat mount.
Image coming soon
AZIMUT ONE MAG COMPASS — Round Ø 50/60 mm
Boom-mounted RS485 azimuth sensor. Round Ø 50/60 mm mount.
Electronics only
Standalone electronic boards
F4HIK-LAB I2C HUB 1×5 — board only
Dimensions : 62 × 18 mm
Assembled electronic board distributing one I2C bus input to five outputs. Fitted with six 4-pin JST-XH headers. Housings, contacts and cables are not included.
F4HIK-LAB I2C HUB 1×5 — with connectors
Dimensions : 62 × 18 mm
Assembled electronic board distributing one I2C bus input to five outputs. Fitted with six 4-pin JST-XH headers. Supplied with six 4-pin JST-XH housings and 24 crimp…
View details
Assembled electronic board distributing one I2C bus input to five outputs. Fitted with six 4-pin JST-XH headers. Supplied with six 4-pin JST-XH housings and 24 crimp contacts. Cables are not included and contacts must be crimped by the buyer.
F4HIK-LAB DUAL RS485 I2C
Add two independent RS485 interfaces to your system through a single I2C bus. Each port has its own TVS protection and a jumper-selectable 120 Ω termination. The mod…
View details
Add two independent RS485 interfaces to your system through a single I2C bus. Each port has its own TVS protection and a jumper-selectable 120 Ω termination.
The module uses one SC16IS752 and two MAX3485 transceivers. The two separate lines allow two devices to use the same protocol and RS485 address.
Power supply: 5 V DC through a dedicated connector. Internal logic: 3.3 V. Four selectable I2C addresses: 0x48, 0x49, 0x4C and 0x4D. One I2C address provides access to both UART channels. No galvanic isolation.
The module uses one SC16IS752 and two MAX3485 transceivers. The two separate lines allow two devices to use the same protocol and RS485 address.
Power supply: 5 V DC through a dedicated connector. Internal logic: 3.3 V. Four selectable I2C addresses: 0x48, 0x49, 0x4C and 0x4D. One I2C address provides access to both UART channels. No galvanic isolation.
AC compatibility
Compatible AC rotors: Yaesu G-450C/G-450A, G-600/G-600RC, G-650C/G-650RC/G-1000C and G-2000RC; Kenpro KR-400/KR-400RC, KR-600/KR-600RC and KR-650XL; Hy-Gain HAM-IV, HAM-V and Tailtwister T2X. Other models after technical validation.
Current version: screen 4.31 · WT LAN 1.76.
Prosistel 12/24 V with 3-wire potentiometer supported. 5-wire Hall sensors: not yet available.
